GHE-0500
Description
GH Airless Gun series
• Max operation pressure: 500 bar
• Stainless steel swivel, needle and sheet
• Applied fire proof O-rings
• Designed 4 finger trigger and Hanger
Application
• Typical fluids handled, Adhesive, Lubricants, Sealants, Mastics etc.
| SPECIFICATION | GHE-0500 |
|---|---|
| MAXIMUM WORKING PRESSURE | 500 bar (7,250 psi) |
| FLUID ORIFICE | 0.090 inch (2.3 mm) |
| FLUID INLET | 1/4 npsm (m) |
| MAXIMUM FLUID TEMPERATURE | 71℃(160℉) |
| WEIGHT | 576 g |

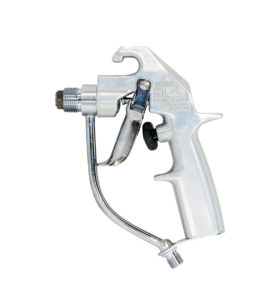

S-P GUN
Description
G830-200 ~ G830-203, G830-400 ~ G830-403
Pressure rated at 5,000 psi (350 bar)
Tungsten carbide ball and seat assure wear-resistance

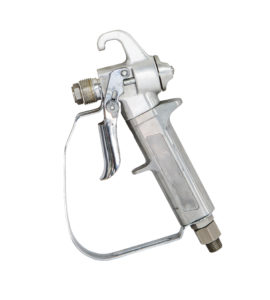

C-T GUN
Description
G840-200~G840-203, G840-400~G840-403
Pressure rated at 3,600psi(250bar)
Tungsten carbide ball and seat assure wear-resistance
Stainless steel swivel, needle, seat and two finger trigger are available

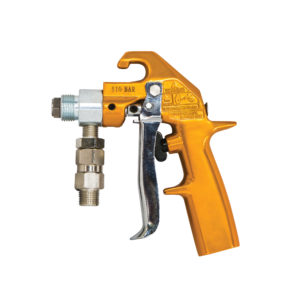

PFP GUN
Description
G530-400 ~ G530-403
Pressure rated at 7,396 psi (510 bar)
Suitable for high viscosity material or industrial spraying job as well as texture paint spraying.
Tungsten carbide ball and seat assure wear-resistance
C-T GUN
Description
G841-200~G841-203, G841-400 ~ G841-403
Light weight type
Four finger and two finger trigger are available

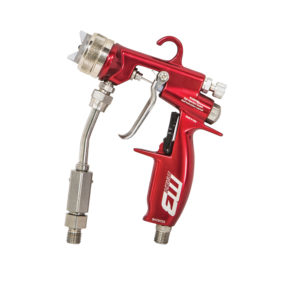

AA GUN
Description
G850-000
Pressure rated at 3,600 psi (250 bar)
Tip filter can be inserted
Weight: 490g

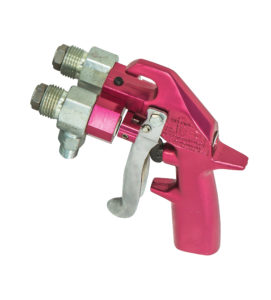

TWO HEAD GUN
Description
G861-400~G861-403
Pressure rated at 5,000 psi (350 bar)
Two component spraying
Tungsten carbide ball and seat assure wear-resistance

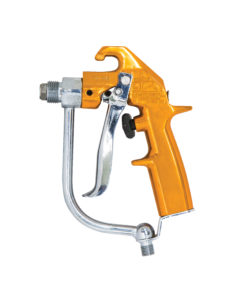

510 BAR GUN
Description
G510-400 ~ G510-403
Pressure rated at 7,396psi(510bar)
Suitable for high viscosity material or industrial spraying job as well as texture paint spraying.
Tungsten carbide ball and seat assure wear-resistance

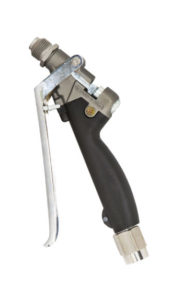

U-T GUN
Description
G330-200, G330-100
Pressure rated at 5,000 psi (350 bar)
Tungsten carbide ball and seat assure wear-resistance
Easy trigger pulling for precise material dispense.
HV U-T GUN
Description
G340-100, G340-200, G340-300, G340-400
Pressure rated at 7,396 psi (510 bar)
Suitable for high viscosity material or industrial spraying job as well as texture paint spraying.
Tungsten carbide ball and seat assure wear-resistance

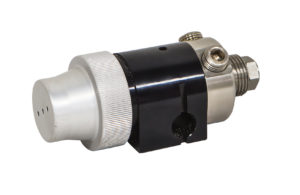

AUTO-GUN
Description
G761-100, G761-200, G761-300, G761-400
Pressure rated at 3,600 psi (250 bar)
Ensuring consistence fluid flow
Light weight type

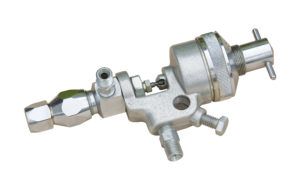

AUTO GUN
Description
G751-100, G751-200, G751-300, G751-400
Pressure rated at 3,600 psi (250 bar)
Applied to zinc material, fabricated heavy materials.
